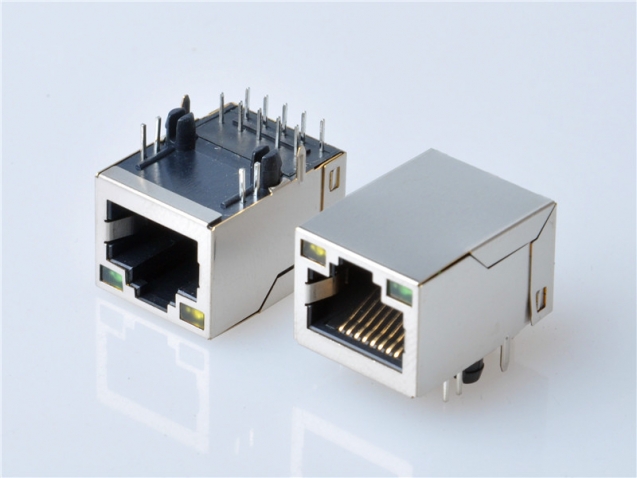

RJ45 Modular Jack 1x1 Fast W/POE
Model： HBJ-6308ANLF
Series： RJ45 With PoE Series
Download PDF
- Specification
- Drawing sheet
-
Place of Origin：
China (Mainland)
Number：
HBJ-6308ANLF
Brand Name：
HULYN
Type：
DIP/SIDE ENTRY
Shield EMI Tabs:
YES
Speed:
100BASE-TX
Application：
PCB
Gender：
Female
Number of Ports:
1x1
LED：
G/Y
Temperature:
0 TO 70
Latch:
UP
Description:
10/100/1000 Base-TX RJ45 single port with integrated magnetics – Designed for most leading PHY
manufacturers with the addition of Power over Ethernet, according to IEEE 802.3af
Features and Benefits:
RoHS peak wave solder temperature rating 260°C
Single port Connector for PoE applications
Electrical Performance Summary:
350μH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
15W, 350mA, 48V PoE rating
